Name: 5W RGB COB LED Chip 12-14V 300mA Aluminum RoHS
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-1708RGB-5W
Price: 12.20 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: HuanYu Dream

証明: RoHS

モデル番号: HY-1708RGB-5W

支払いと送料の条件

最小注文数量: 交渉可能

価格: 交渉可能

受渡し時間: 7-9勤務日

支払条件: T/T、ウェスタンユニオン

供給の能力: 50000pcs/日

最高の価格を入手する

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                5W RGB COB LED chip, 12-14V tunable COB LED, aluminum RoHS LED chip


タイプ:	RGB Cob LED	力:	5W
電圧:	12-14V	現在:	300mA
材料:	アルミニウム	色:	赤+緑+青
証明書:	Rohs	OEMサービス:	はい

タイプ:	RGB Cob LED
力:	5W
電圧:	12-14V
現在:	300mA
材料:	アルミニウム
色:	赤+緑+青
証明書:	Rohs
OEMサービス:	はい

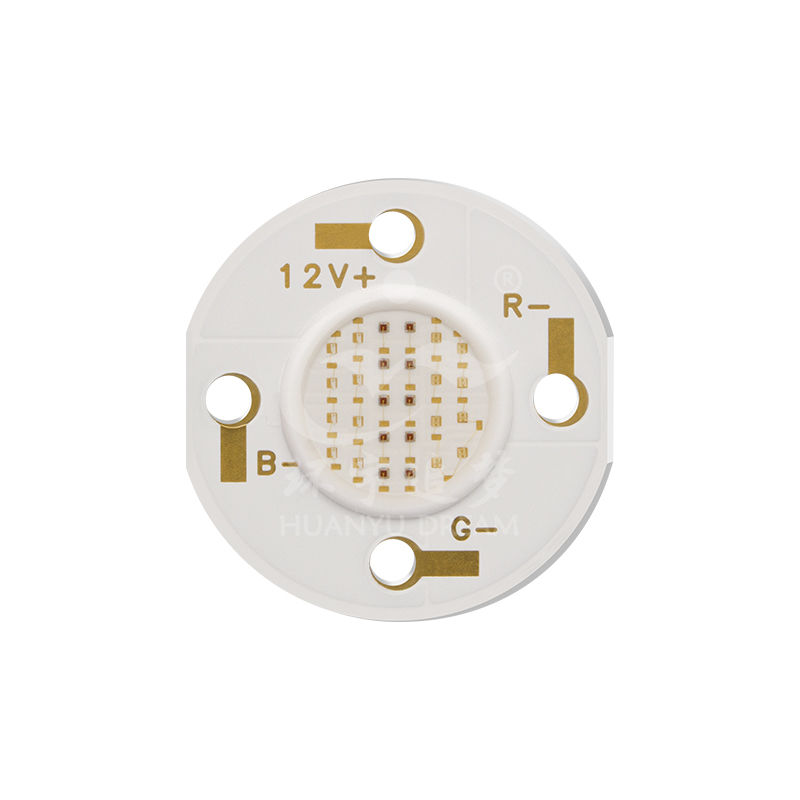

5W RGB COB LED Chip 12-14V 300mA Aluminum RoHS

COB RGB LED RGBW RGBCW LED CHIP 5W 15W 24W 30W 36W 80W High Power COB LED CHIP

Product Specifications

Attribute	Value
Type	RGB COB LED
Power	5W
Voltage	12-14V
Current	300mA
Material	Aluminum
Color	Red+Green+Blue
Certificate	RoHS
OEM Service	Yes

Product Description

RGB COB (Chip-on-Board) LEDs and RGBW COB LEDs are advanced lighting solutions that offer various advantages depending on the application.

Key Features of RGB COB LED

Full Color Mixing - Can produce a wide range of colors by combining red (R), green (G), and blue (B) light
Compact Design - COB technology integrates multiple LED chips into a single module, providing high-intensity light in a small form factor
Energy Efficiency - More efficient than traditional RGB LEDs due to better thermal management and higher lumen output
Smooth Color Blending - The closely packed LED chips in COB LEDs reduce pixelation, resulting in smoother color transitions
Cost-Effective - Generally cheaper than RGBW COB LEDs since it lacks a dedicated white channel
Dynamic Lighting Effects - Ideal for mood lighting, stage lighting, and decorative applications where vibrant colors are needed

Product View

Technical Specifications

Item	HY-1708RGB-5W
Power	5W
Color	Red+Green+Blue
Voltage	12-14V
Current	R/G/B:300mA

Item	HY-2214RGB-36W
Power	36W
Color	Red+Green+Blue
Voltage	R:9-11V/ G/B:12-15V
Current	700mA

Item	HY-1917RRIR-45W
Power	45W
Color	Deep Red+IR+Far IR
Voltage	12-14V
Current	1000mA

Applications

Frequently Asked Questions

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity.

Q3. Do you have any MOQ limit for led light order? What's the Payment way?

A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new.
