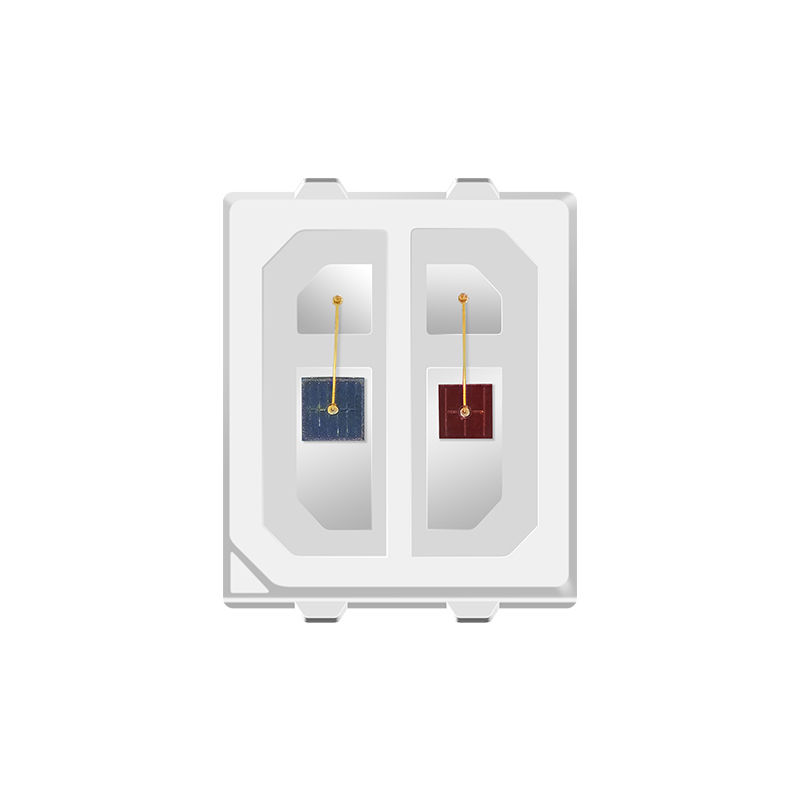

Dual Color 2835 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Therapy Mask Belt

Name: Dual Color 2835 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Therapy Mask Belt
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: 3030-biカラー
Price: 12.20 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: HuanYu Dream

証明: RoHS

モデル番号: 3030-biカラー

支払いと送料の条件

最小注文数量: 交渉可能

価格: 交渉可能

パッケージの詳細: 5000pcs/リール

受渡し時間: 7-9勤務日

支払条件: T/T、PayPal、Ali Pay

供給の能力: 500000pcs/日

最高の価格を入手する

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                Bi-Color SMD LED therapy chip, Dual color LED for therapy mask, Custom spectrum SMD LED chip


LEDタイプ:	2835 SMD LED	色（CCT）:	460nm+660nm
電圧:	3.0-3.2V	力:	シングルチャンネル 0.5 ワット
CRI:	80	基板:	pct
保証:	3年	特徴:	2色

LEDタイプ:	2835 SMD LED
色（CCT）:	460nm+660nm
電圧:	3.0-3.2V
力:	シングルチャンネル 0.5 ワット
CRI:	80
基板:	pct
保証:	3年
特徴:	2色

Dual Color 2835 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Therapy Mask Belt

Product Description

Dual Color 2835 SMD LED Chip with 440nm 450nm 460nm 470nm add Red 650nm 660nm 850nm Full Spectrum Customization Available

Key Features

Power: 1W(3V*150mA*2) tunable color
Low thermal resistance
Super Long life >50000hrs
Compact structure, smaller size can achieve higher power
White colors available in (2700K-25000K), Color mixing with high CRI
Bright Colors and true appearance for Therapy Light Mask Belt Hat

Specifications

Electronic power	0.5W*2
Color temperature	460nm+660nm (450nm 520nm 850nm 730nm 1072nm are available)
CRI	80
VF	3.0-3.2V
IF	150mA*2
Lumen	75-80LM/80-85LM
WHOLE SIZE	3.0*3.0mm
CHIP	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years
Leading time	7-10days

Absolute Maximum Ratings at Ta=25℃

Dimensions (Tolerance:+/-0.1, Unit:mm)

Applications

Therapy Light
Indoor lighting: Fluorescent lamp, tube
Commercial illumination and displays: Advertising words, light box
Light strip
LCD Back lighting
Other illumination and displays

Detailed Application Scenarios

I. Home Lighting and Atmosphere

1. Main Bedroom Lighting and Sleep Aid

Utilizes dual-color SMD light source: Warm White (2700K-3000K) + Red Light (620-660nm). Warm white for daily lighting needs, red light mode for sleep-inducing atmosphere.

2. Living Room Ambiance and Function Switching

Dual-color SMD (cool white + warm yellow) for daytime brightness and nighttime cozy atmosphere.

II. Commercial Display and Decoration

1. Store Windows and Product Displays

Warm white + cool white combination for clothing stores, white light + violet light for jewelry/cosmetics.

III. Medical and Nursing Scenarios

1. Skin Care and Physical Therapy

Red light (660nm) + blue light (415nm) for skin treatment and acne improvement.

IV. Industrial and Indicator Scenarios

1. Device Status Indicator

Dual-color "red (fault) + green (normal)" for equipment control panels.

V. Consumer Electronics and Portable Devices

1. Mobile Phone/Tablet Fill Light

Warm white for portraits, cool white for scenery with color temperature adjustment.

About Us

FAQ

Q1. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places order.

Q2. What about the lead time?

A: Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity.

Q3. Do you have any MOQ limit for led light order?

A: MOQ is 100pcs for each model.

Q4. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q5. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q6: How to deal with the faulty?

A: Our products have defective rate less than 0.2%. During the guarantee period, we will send new replacements.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
