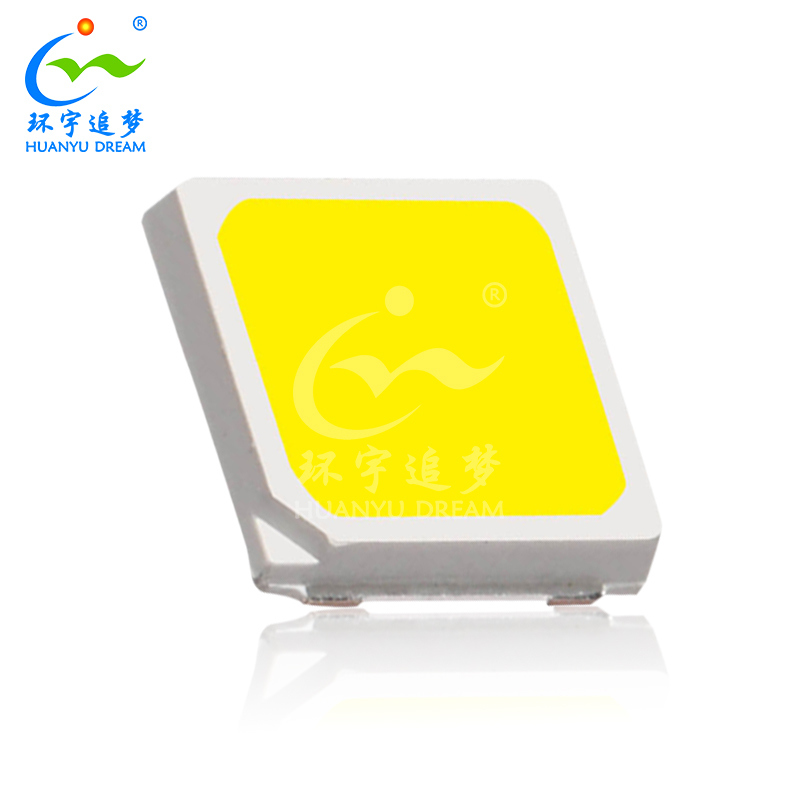

High Power High Light Efficiency SMD 5054 6V 600mA Ra70 White LED CHIP

Name: High Power High Light Efficiency SMD 5054 6V 600mA Ra70 White LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054W57L600-4W
Price: 12.20 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: HuanYu Dream

証明: Rohs

モデル番号: HY-5054W57L600-4W

支払いと送料の条件

最小注文数量: 交渉可能

価格: 交渉可能

パッケージの詳細: 4000pcs/リール

受渡し時間: 7-9勤務日

支払条件: T/T、PayPal、Ali Pay

供給の能力: 200kkpcs/月

最高の価格を入手する

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                5054 SMD LED chip 6V, high light efficiency LED chip, Ra70 white LED chip


モデル:	HY-5054W57L600-4W	現在（ma）:	600mA
電圧（V）:	6.0-6.2V	色:	5700K
CRI （RA）:	70	効率（LM/W）:	180LM/W@600mA
基板:	EMC	カスタマイズ可能:	サポート

モデル:	HY-5054W57L600-4W
現在（ma）:	600mA
電圧（V）:	6.0-6.2V
色:	5700K
CRI （RA）:	70
効率（LM/W）:	180LM/W@600mA
基板:	EMC
カスタマイズ可能:	サポート

High Power High Light Efficiency SMD 5054 6V 600mA Ra70 White LED CHIP

Product Overview--High Light Efficiency SMD LED 5054

High Power High Light Efficiency SMD 5054 6V 600mA Ra70 White LED CHIP delivers exceptional performance for demanding lighting applications.

Technical Specifications--SMD 5054 LED CHIP

Attribute	Value
Model	HY-5054W57L600-4W
Current	600mA
Voltage	6.0-6.2V
Color Temperature	5700K
CRI (Ra)	70
Efficiency	250LM/W@60mA
Substrate	EMC
Customizable	Supported

Product Description--High Power High Light Efficiency SMD 5054 CHIP

The SMD 5054 LED chip features 4W power output with luminous efficacy up to 180 lumens/watt at 600mA drive current. With a 5700K color temperature producing cool white light similar to natural sunlight and a color rendering index of Ra70, this high-brightness, high-efficiency light source is ideal for industrial, outdoor, and commercial environments requiring powerful functional lighting. It provides clear, bright illumination that enhances concentration and visibility.

Detailed Specifications--SMD 5054 High Light Efficiency

Parameter	Specification
Electronic Power	4W
Color Temperature	5700K
Current (IF)	600mA
Forward Voltage (VF)	6.0-6.2V
Light Efficiency	180lm/w@600mA
CRI	70
Lumen Output	600-700LM
Dimensions	5.0×5.4mm
Chip Manufacturer	Sanan/Epistar
Viewing Angle	120°
Warranty	3 years

Package Size--White SMD 5054 LED

Applications--SMD 5054 LED CHIP

Industrial Lighting: Factories, warehouses, workshops, manufacturing areas, and high-bay lighting requiring bright, energy-efficient illumination for safety and productivity.
Outdoor Lighting: Street lighting, parking lots, plazas, building facades, and landscape lighting to enhance nighttime visibility and security.
Commercial Lighting: Large supermarkets, shopping malls, exhibition areas, and display cases where cool white light effectively highlights merchandise and creates vibrant environments.
Public Facility Lighting: Hospitals (non-surgical areas), laboratories, subway stations, school corridors, and offices requiring clear, focused illumination for work and study.
Special Function Lighting: Automotive headlights, emergency lighting systems, searchlights, and specialized luminaires requiring high-intensity directional lighting.
