Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights

Name: Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: 3030 デュアルカラー VCSELS
Price: 12.20 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: HuanYu Dream

証明: RoHS

モデル番号: 3030 デュアルカラー VCSELS

支払いと送料の条件

最小注文数量: 交渉可能

価格: 交渉可能

パッケージの詳細: 5000pcs/リール

受渡し時間: 7-9勤務日

支払条件: T/T、PayPal、Ali Pay

供給の能力: 500000pcs/日

最高の価格を入手する

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                Dual Color VCSEL SMD LED chip, Bi-Color SMD LED for phototherapy, Customizable spectrum LED for sauna lights


LEDの種類:	3030 SMD LED	色（CCT）:	450nm+660nm
電圧:	3.0-3.2V	力:	シングルチャンネル 0.5 ワット
現在:	20mA	基板:	pct
保証:	3年	特徴:	2色

LEDの種類:	3030 SMD LED
色（CCT）:	450nm+660nm
電圧:	3.0-3.2V
力:	シングルチャンネル 0.5 ワット
現在:	20mA
基板:	pct
保証:	3年
特徴:	2色

Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights

Dual Color VCSELs 3030 SMD LED Chip

Product Overview

Dual Color 3030 VCSELs SMD LED Chip featuring 460nm, 660nm, and 850nm wavelengths with two-color spectrum customization available. Rated at 1W, ideal for phototherapy equipment, large LED light panels, and sauna room lighting applications.

Technology Comparison: VCSELs vs LEDs

VCSELs (Vertical-Cavity Surface-Emitting Lasers) produce coherent laser light, while LEDs (Light Emitting Diodes) emit incoherent light, resulting in significant differences in optical characteristics and performance.

Working Principle & Optical Characteristics:
• VCSEL: Stimulated emission with narrow spectral width (single wavelength), strong directionality (20° divergence)
• LED: Spontaneous emission with wider spectral width, larger divergence angle (180°)

Performance Advantages:
• Electro-optical Efficiency: VCSELs up to 56% vs LEDs ~20%
• Response Speed: VCSELs nanoseconds vs LEDs slower response
• Beam Quality: VCSELs excellent collimation with high coupling efficiency

Key Features

Power: 1W (3V × 150mA × 2) with tunable color
VCSELs LED technology
Low thermal resistance
Super long life >50,000 hours
Compact structure enabling higher power in smaller size
White colors available (2700K-25000K) with high CRI color mixing
Bright colors and true appearance for therapy light applications

Technical Specifications

Parameter	Specification
Electronic Power	0.5W × 2
Color Temperature	460nm + 660nm (450nm, 520nm, 850nm, 730nm, 1072nm available)
CRI	80
Forward Voltage (VF)	3.0-3.2V
Forward Current (IF)	150mA × 2
Lumen Output	75-80LM / 80-85LM
Whole Size	3.0 × 3.0mm
Chip Source	Sanan/Epistar
View Angle	120°
Warranty	3 years
Lead Time	7-10 days

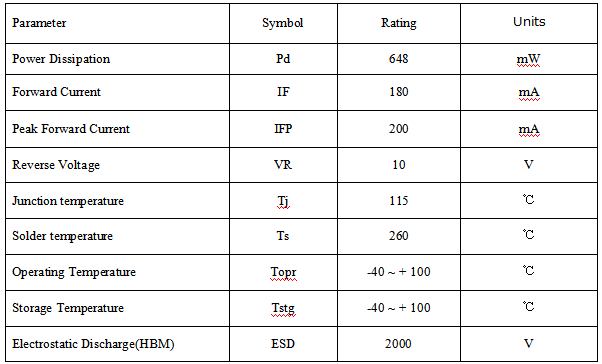

Maximum Ratings

Dimensions

Applications

Therapy Light systems
Indoor lighting: Fluorescent lamps, tubes
Commercial illumination and displays: Advertising signage, light boxes
Light strips
LCD Back lighting
General illumination and display applications

Detailed Application Scenarios

Home Lighting & Atmosphere

Main Bedroom Lighting & Sleep Aid: Warm White (2700K-3000K) + Red Light (620-660nm) for daily lighting and sleep-inducing atmosphere.

Living Room Ambiance: Dual-color SMD (cool white + warm yellow) for daytime brightness and nighttime cozy atmosphere.

Commercial Display & Decoration

Store Windows & Product Displays: Warm white + cool white for clothing stores; white light + violet light for jewelry/cosmetics.

Medical & Nursing Applications

Skin Care & Physical Therapy: Red light (660nm) + blue light (415nm) for skin treatment and acne improvement.

Industrial & Indicator Applications

Device Status Indicators: Dual-color "red (fault) + green (normal)" for equipment control panels.

Consumer Electronics

Mobile/Tablet Fill Light: Warm white for portraits, cool white for scenery with adjustable color temperature.
