Name: Cool White Copper Bracket SMD LED 3528 120 Degree LED CHIP 3V
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-3528W30L8
Price: 12.20 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: HuanYu Dream

証明: Rohs

モデル番号: HY-3528W30L8

支払いと送料の条件

最小注文数量: 2000pcs

価格: 交渉可能

パッケージの詳細: 2000pcs/リール

受渡し時間: 7-9勤務日

支払条件: T/T、PayPal、Ali Pay

供給の能力: 500kpcs/日

最高の価格を入手する

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                                                                                3528 SMD LED chip, cool white LED 3528, 3V SMD LED chip


サイズ:	3.5*2.8mm	電圧:	2.8-3.2v
現在:	20ma	ra:	70
色:	3000-3500K	ルーメン:	8-10LM
表示角度（°）:	120	カスタマイズ:	Availabe

サイズ:	3.5*2.8mm
電圧:	2.8-3.2v
現在:	20ma
ra:	70
色:	3000-3500K
ルーメン:	8-10LM
表示角度（°）:	120
カスタマイズ:	Availabe

Cool White Copper Bracket SMD LED 3528 120 Degree LED CHIP 3V

Key Features

Light Color: Cool white, 7000-8000K
Package: 3528 standard size (3.5x2.8mm)
Brightness: 8-11 lumens, medium to low
Color Rendering: Ra 80, good color reproduction
Electrical: 3V voltage, 0.06W power consumption, energy-efficient and low heat generation

Technical Specifications

Power	0.06W
Color temperature	7000-8000K
VF	2.9-3.2V
IF	20mA
CRI	80
Luminous Efficiency	8-11lm
Warranty	3 years

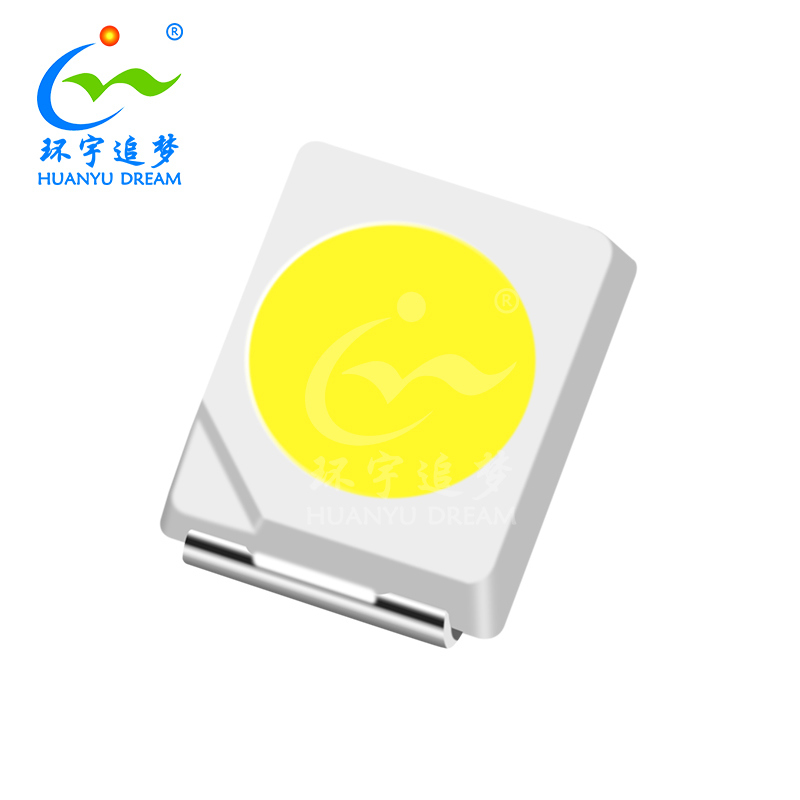

Product Image

Applications

LED light strips/bars: Serving as a basic light source for indoor and outdoor decorative lighting, outline drawing, and other applications.
Advertising backlighting: Used for uniform illumination of the interiors of light boxes, signs, and advertising signs.
Appliance indicator lights: Provide backlighting or status indications for the panels of home appliances and instruments.
Automotive interior lighting: Provides ambient lighting for non-primary lighting, such as footwell lamps and decorative strips.
Toys and gifts: Provides luminous effects for electronic toys and creative gifts.

These LEDs are primarily used in applications where individual LED brightness is not a requirement, but where multiple LEDs are combined to achieve uniform lighting or decorative effects.
