Name: Cool White 15000-20000K 3V 3528 SMD 120 Degree 9-11LM LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-3528W150A9-1S
Price: 12.20 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: HuanYu Dream

証明: RoHS

モデル番号: HY-3528W150A9-1S

支払いと送料の条件

最小注文数量: 2000個

価格: 交渉可能

パッケージの詳細: 2000pcs/リール

受渡し時間: 7-9勤務日

支払条件: T/T、ペイパル、アリペイ

供給の能力: 500kpcs/日

最高の価格を入手する

製品詳細

製品説明

ハイライト:
                                                                                                                                                                                                                                                3528 SMD LED chip cool white, 3V 3528 SMD LED, 15000-20000K LED chip 120 degree


種類:	HY-3528W150A9-1S	CCT:	15000-20000K
電圧:	2.8-3.0V	もし:	20mA
ルーメン:	9-11LM	カスタマイズされた:	利用可能

種類:	HY-3528W150A9-1S
CCT:	15000-20000K
電圧:	2.8-3.0V
もし:	20mA
ルーメン:	9-11LM
カスタマイズされた:	利用可能

Cool White 15000-20000K 3V 3528 SMD 120 Degree 9-11LM LED CHIP

Product Overview

Cool White 15000-20000K 3V 3528 SMD 120 Degree 9-11LM LED CHIP

Technical Specifications

Attribute	Value
Types	HY-3528W150A9-1S
CCT	15000-20000K
Voltage	2.8-3.0V
IF	20mA
Lumens	9-11lm
Customized	Available

Key Features

Color Temperature Type: Cool White, color temperature range 15000-20000K
Operating Voltage: 3V low-voltage drive, suitable for portable or low-voltage circuit designs
Package Size: Standard 3528 SMD package (3.5mm long × 2.8mm wide)
Emitting Angle: 120-degree wide-angle light emission, large illumination coverage, no obvious dark areas
Luminous Flux: 9-11 lumens (lm) per chip

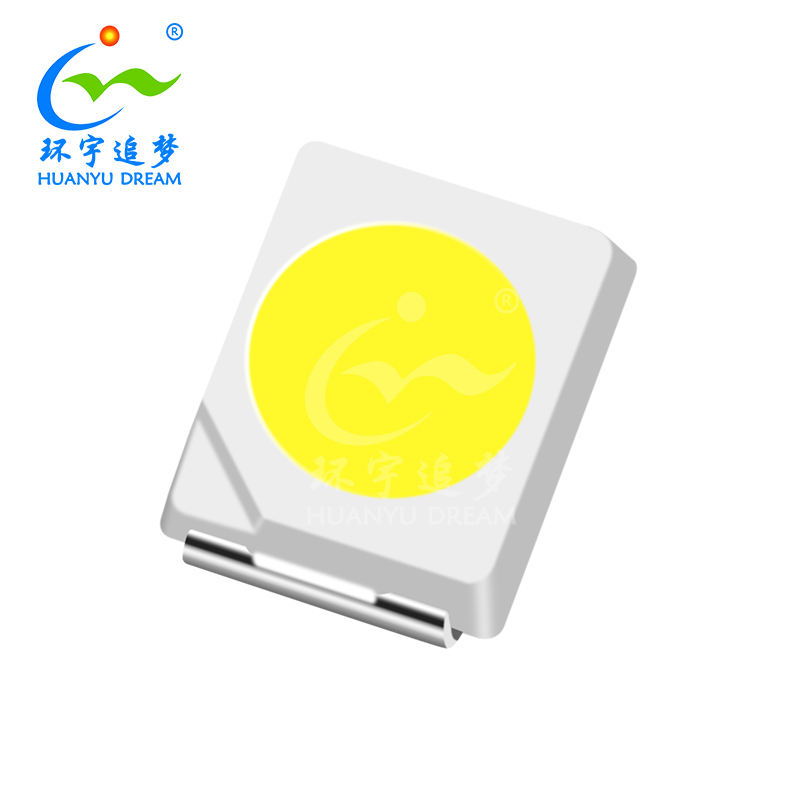

Product Image

Applications

Special Atmosphere and Decorative Lighting: Suitable for decorative lighting scenarios requiring a cool, futuristic atmosphere, such as bars, KTVs, and gaming rooms
Industrial Inspection and Auxiliary Lighting: Can be used with industrial endoscopes or circuit board inspection equipment, utilizing high color temperature to enhance the contrast of scratches and dust
Aquarium or Plant Supplemental Lighting: Can be used in special cases as supplemental lighting for deep-sea coral tanks or specific plant growth stages
DIY Electronics and Model Modification: Suitable for embedding DIY electronic projects, remote control models, or futuristic figurines into homemade lighting devices
Optical Experiments and Teaching Demonstrations: Can be used in middle school or university physics experiments to demonstrate color temperature and LED photoelectric characteristics
Portable Night Light or Emergency Light: Can be made into a 3V battery-powered portable cool-color night light or emergency lighting tool

For more information about this LED chip, please contact our technical team for detailed specifications and customization options.
